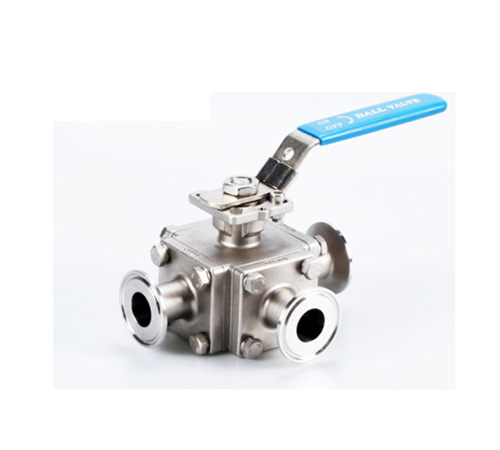

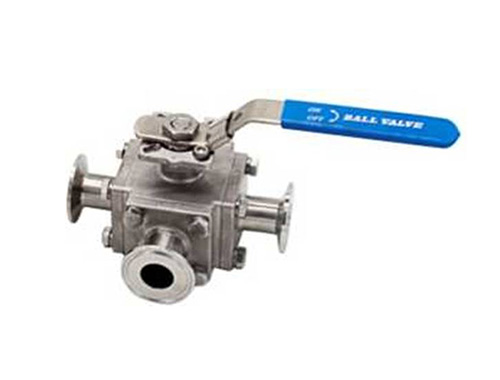

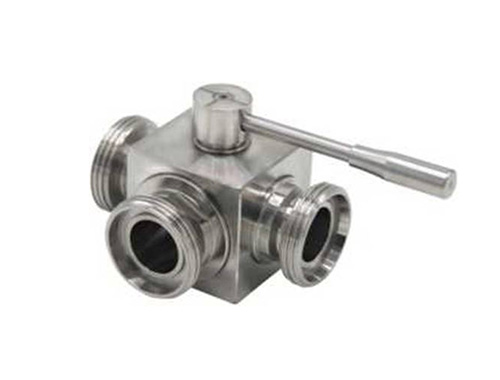

Threaded Three-way Full Bore Manual Ball Valve |
T Port |
  |

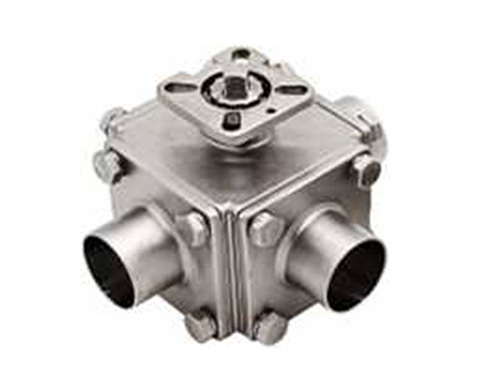

Quick-
install/ welded three-way full bore manual ball valve |
L Port
Ball Type
|
 |
 |
 |
 |
|
NO.RVB160801 |
NO.RVB160802 |
3A
|

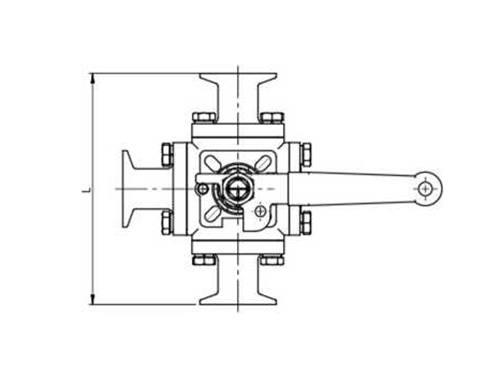

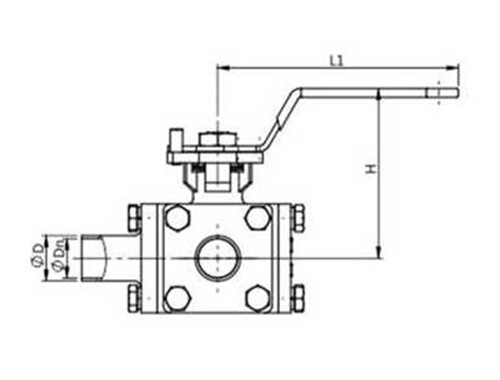

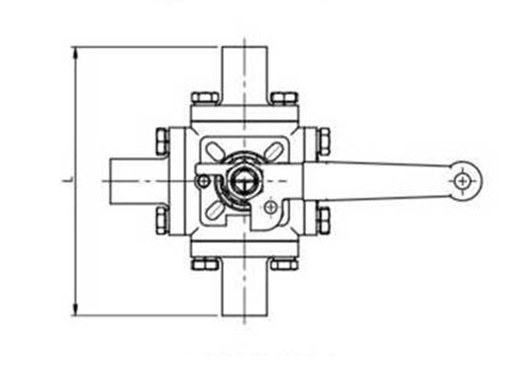

SIZE |
ODn |
OD |
0D1 |
L |
LI |
H |
|
1/2" |
9.4 |
12.7 |
25.2 |
118 |
135 |
77 |
|
3/4" |
15.8 |
19.1 |
25.2 |
127 |
135 |
78 |
|
1" |
22.1 |
25.4 |
50.5 |
152 |
135 |
95 |
|
1.25" |
28.5 |
31.8 |
50.5 |
175 |
181 |
113 |
|
1.5" |
34.8 |
38.1 |
50.5 |
175 |
181 |
113 |
|
2" |
47.5 |
50.8 |
64 |
201 |
181 |
121 |
|
2.5" |
60.2 |
63.5 |
77.5 |
227 |
181 |
135 |
|
3" |
72.9 |
76.2 |
91 |
262 |
336 |
140 |
|
4" |
97.4 |
101.6 |
119 |
319 |
436 |
158 |
DIN
|
SIZE |
ODn |
OD |
OD1 |
L |
LI |
H |
|
DN15 |
15 |
18 |
34 |
118 |
135 |
77 |
|
DN20 |
19 |
22 |
34 |
127 |
135 |
78 |
|
DN25 |
25 |
28 |
50.5 |
152 |
135 |
95 |
|
DN32 |
31 |
34 |
50.5 |
175 |
181 |
113 |
|
DN40 |
37 |
40 |
50.5 |
175 |
181 |
113 |
|
DN50 |
49 |
52 |
64 |
201 |
181 |
121 |
|
DN65 |
66 |
70 |
91 |
227 |
181 |
135 |
|
DN80 |
81 |
85 |
106 |
262 |
336 |
140 |
|
DN100 |
100 |
104 |
119 |
319 |
436 |
158 |
