3 PC FULL PACKAGE BALL VALVE

Quick install three piece pneumatic full package ball valve (adjustable）	Threaded three piece pneumatic full package ball valve

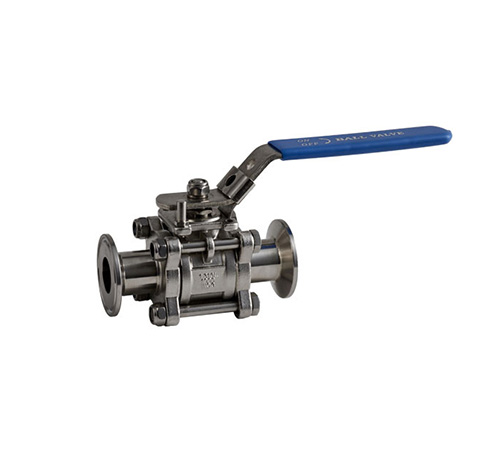

Welded three piece manual full package ball valve	Threaded three piece manual full package ball valve	Quick install three piece manual full package ball valve

Quick install three piece manual high platform full package ball valve	Welded three piece high platform full package ball valve

APPLICATIONS:

It applied in food , beverage, wine, pharmaceutical and chemical industries.

DESIGN FEATURES:

GASKET：PTFE, telfone FDA117.2600

SIZE: DN10-DN100 1/2”-4”

3A.DIN,SMS,IDF,RJT,BPE,ISO

All-inclusive tee design,no stranded high clean,meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180°C,the highest pressure 10 bar.

Available with a variety of structures,such as electric pneumatic, stainless steel, horizontal vertical pneumatic, key manually handle.can also be equipped with the control unitjocato,position sensor and other compatible automatic control system.

Valve body can be replaced in any connections, and the length will not change.

Connection: clamp,weldfthread,flange

Material for the part contacted with media is 304/316L,other part is 304.

Sealing material: PTFE, it is according to FDA117.2600

Size: 1/2" -4" /DN10-100 Standards: 3A,DIN,SMS,IDF,RjT,BPE,ISO
