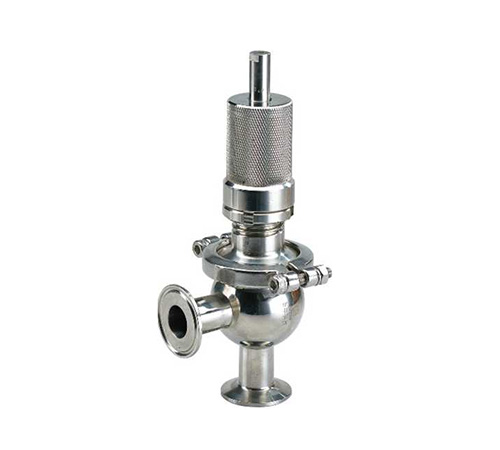

SANITARY SAFETY VALVE

Steel parts: stainless steel304,stainless steel 316L

Seal: rubber

 APPLICATIONS:

This series safety valve is the sanitary stainless steel valve,its safety design make it protect the equipment,so it installed in the return circuit of discharge pressure,itfs good for safety protect function in pipeline,pump,device,storage tank.Extensiveloy use to food, beverage, dairy, beer industry etc.

 WORKING PRINCIPLE:

This series safety valve is calibration one specific pressure by adjust gland nut.calibration pressure is the max.safety pressure in order to avoid equipment damage.Under the normal working pressure,the valve is dose;When the pressure of system beyond the calibration pressure,the valve will be open.The pressure in the pipeline system get release,thus protect the pipeline and equipment.
