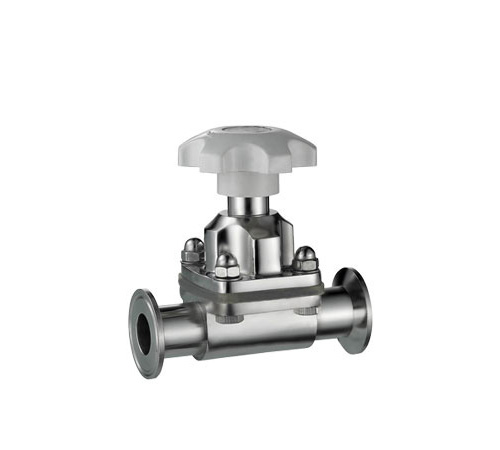

The diaphragm is closed under normal state, and that moment the diaphragm clung to the valve body cavity, and closing off the flow path through the pipeline.

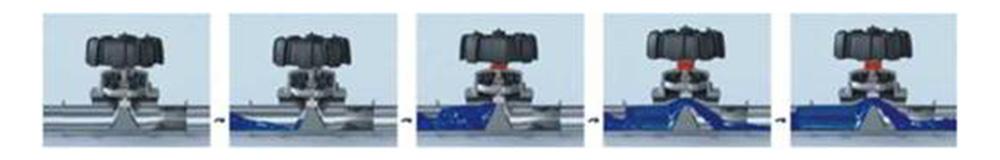

When the diaphragm valve have the requirement to clean or open,the valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally bend upwards,so that the valve is open and reach the requirement of clean and open.

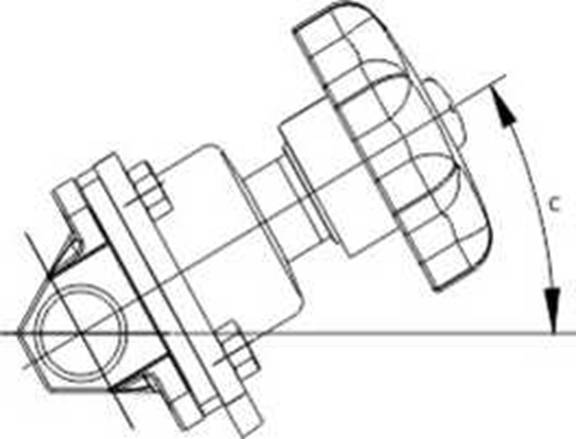

The diaphragm make the lower body cavity and the upper chamber separated from the valve cover;so that the stem at the top of the diaphragm ,disc media and other parts from corrosioaeliminating the need for packing structure.and no media leaks.the optimize valve body made the cleaning liquid flow out totally, so that don' t have any entrapment.

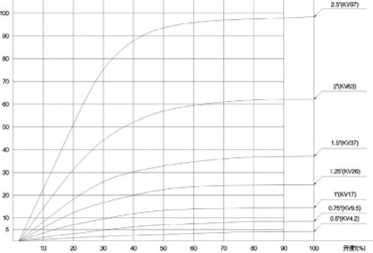

Design features:

Material for the part contacted with media is 304/316L, other part is 304,Sealing material EPDM + PTFE. working pressure: 0?lObar control air pressure: 5?8bar

Working temperature: EPDM(-40 ~+120°C), PTFE(-40 ~+1B00C), FPM (-40~+180°C )

Connection: clamp,weld,thread,flange

Control mode: manual operation, pneumatic, electric

Size: 1" -4" /DN25-100 Standards: 3A,DIN,SMS,IDF,ISO
